70,000 litre liquid storage tank, efficient and effective when a larger liquid capacity is required.
Technical specifications
Download DatasheetWeights/measurements
-
Volume
70,000 Litre,
70m3,
15,400 Gallons (UK) -
Length
12,800mm - including rigged platform
-
Width
2,600mm
-
Height
3,260mm
-
Weight
10,000kg (approx.) Empty
-
Ground Pressure
216 kPA Over 4 Skids when full of liquid @ SG 1.12
Mobilisation
- Self-offload by Roll-On-Off
- Liftable by crane using easy reach, low level lifting points.
Technical
-
CONTENTS GAUGING
Sight tube
-
Vent
Vented (on enclosed roof versions)
-
Earth Bonding Point
Located on each end of the tank
-
Manway Access
Low level, quick release, easy access hinged manlid
-
Top Access Platform
Integral access platform c/w steps, handrails, safety swing gate
-
Top Mounted Inspection Hatch
Visual contents inspection, accessible from platform
-
Internal Coating
Chemical resistant epoxy lining (Customer to supply MSDS for tank contents compatibility checking)
-
Sump Outlet
Located at each end of the tank to aid efficient draining and cleaning
-
Removable Roof
Specify configuration at time of ordering

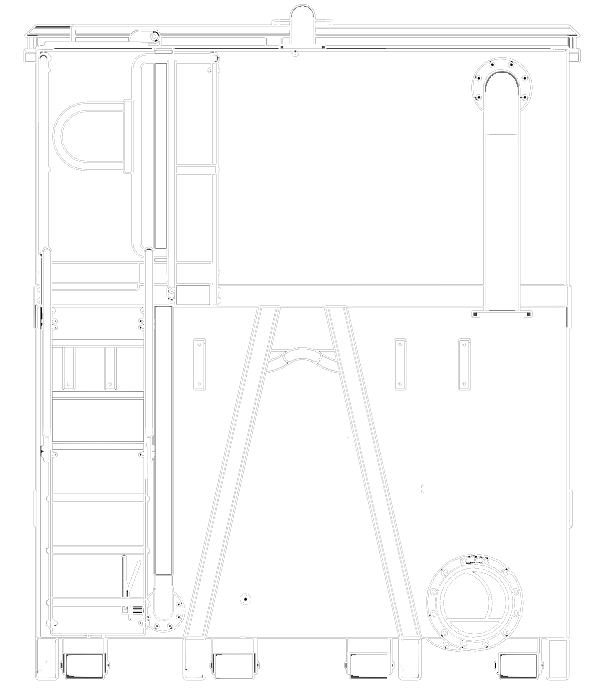

FRONT

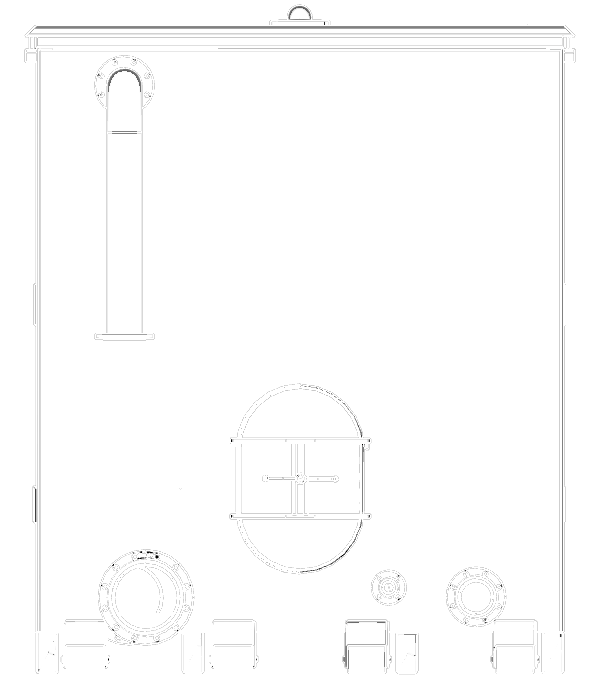

Rear
